Case Study · DELS In Cells

First small-molecule modulators of SOX2 — found inside living cells

SOX2 is an oncogenic pioneer transcription factor with no defined binding pocket and, until now, no reported small-molecule modulators. Using DELs in Cells, Vipergen screened SOX2 against Lib047 — a 499 million-compound DNA-encoded library — directly inside living cells. In-cell competition with consensus DNA and with resynthesized compounds separated genuine chemistry from artefact before a single biochemical assay was run, and EMSA confirmed that two of the four resynthesized hits modulate the sequence-dependent DNA binding of SOX2, the most potent with an EC₅₀ of 0.5 µM without any medicinal chemistry optimization.

499M

Compounds screened (Lib047)

First

Small-molecule modulators of SOX2 reported

2 of 4

Resynthesized hits confirmed by EMSA

0.5 µM

EC₅₀ of lead compound 24A

The Challenge

A master regulator of cancer stem cell identity, with nothing to aim at

SOX2 (SRY-box transcription factor 2) is a pioneer transcription factor and a master regulator of stem cell identity and differentiation. It is overexpressed in multiple cancers, including glioblastoma and squamous cell lung carcinoma, where it sustains the self-renewal programs that drive tumor growth and treatment resistance. That biology makes it a high-interest oncology target.

It is also a textbook hard-to-drug target. SOX2 has no defined binding pockets. Large parts of it are intrinsically disordered, and its function is executed through a DNA-binding interface and protein–protein interactions rather than an active site. A peptide modulator, P42, has been reported, but at the outset of this work no small-molecule modulator of SOX2 had been described.

There is a further, less obvious obstacle. Any screening campaign against a DNA-binding protein using a DNA-encoded library must contend with the target’s affinity for DNA itself. The positively charged interface that recognizes the SOX2 consensus motif will also engage the library’s coding DNA, generating enrichment that looks exactly like a hit and is nothing of the kind. Distinguishing compounds that bind SOX2 from compounds whose barcodes bind SOX2 is a prerequisite, not a downstream concern.

The Approach

Screening a transcription factor where it works

Vipergen screened SOX2 using DELs in Cells, built on our cellular Binder Trap Enrichment (cBTE) technology. cBTE is the only DEL screening format that operates inside a living cell. The protein of interest is expressed as a Prey fusion protein in Xenopus laevis oocytes; the DNA-encoded library and a Bait-DNA are then microinjected into that same cell. The affinity of the Prey protein for the small Bait molecule is used to label the target with DNA in vivo, and binding events are captured by emulsification followed by DNA ligation — so compound–target complexes are encoded as a ligated DNA molecule that can be identified by sequencing.

For a target like SOX2 this matters in three ways:

  • No purified protein is required. The target is expressed in the cells as an intrinsic part of the project, which removes the purification and stability problems that intrinsically disordered proteins routinely present. Around 95% of proteins tested to date are amenable to expression in this system.
  • Physiological screening conditions. Binding is measured in a crowded intracellular environment at native ionic strength, with the target’s folding, post-translational modifications and cofactors intact.
  • Competition can be run in-cell. Because the target is screened inside an intact cell, competitors such as a consensus DNA duplex, or a resynthesized compound can simply be co-injected and the whole hit landscape re-read in their presence. This is the feature that made the SOX2 campaign tractable.

The screening cascade

  1. Target presentation

    Two SOX2 constructs were made, carrying the Prey fusion at the N-terminus or the C-terminus, and both were taken into screening so that the effect of tag position on the binding signal could be read directly.
  2. Screening I — library selection with DNA competition

    Lib047 was screened against both constructs. Lib047 is a 499 million-compound library built for maximum diversity. Each construct was screened alone, in the presence of SOX2 consensus DNA, and in the presence of a control DNA sequence — six experiments in total.
  3. Binder trapping and decoding

    Complexes were trapped by emulsification and recorded by DNA ligation, then amplified, sequenced, counted and decoded. Hits were grouped into chemical series by pairwise Tanimoto similarity.
  4. Screening II — in-cell competition with resynthesized hits

    Four compounds representing the observed clusters were resynthesized off-DNA, and the screen was repeated with SOX2-expressing oocytes pre-injected with the compounds at approximately 25 µM. A compound that genuinely engages SOX2 should change the hit landscape; one that does not, should not.
  5. Orthogonal validation

    Resynthesized compounds were tested against recombinant human SOX2 protein in an electrophoretic mobility shift assay (EMSA), first at a single concentration across three DNA sequences, then in dose-response.

Figure 1.

Schematic of the cBTE workflow. mRNA encoding the SOX2–Prey fusion is microinjected into Xenopus laevis oocytes and expressed; the DNA-encoded library and Bait-DNA are then injected into the living cell. Binding events are captured by lysis, high-factor dilution, emulsification and DNA ligation, then read out by PCR, sequencing, decoding and counting.
The Result

One genuine cluster, confirmed in-cell and then in vitro

Screening I: consensus DNA separates signal from artefact

The SOX2 screens produced a weak but reproducible signal, strongest with the C-terminal Prey construct. Across the six experiments, 25 hits were identified and Tanimoto clustering resolved them into three chemical series: C1, C2 and C3.

Adding consensus DNA changed the picture decisively. In its presence, C1 was maintained while C2 and C3 were repressed. Adding a control DNA sequence produced no major change in any cluster. The interpretation follows directly: C2 and C3 were driven by SOX2’s engagement with library DNA and were competed away by an authentic, sequence-specific DNA duplex; C1 survived that competition and therefore represents compounds binding SOX2 on their own merits. Four compounds (22A and 24A from C1, 27A from C2 and 28A from C3) were resynthesized off-DNA.

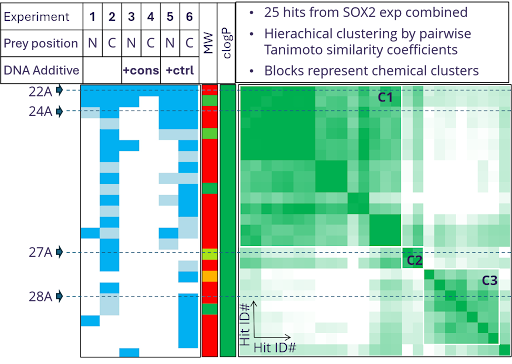

Figure 2.

Pairwise Tanimoto similarity of hits from the SOX2 screens, with blocks representing chemical clusters. Screening I: 25 hits resolve into C1, C2 and C3; consensus DNA maintains C1 and represses C2 and C3.

Screening II: a compound that rewrites the hit landscape

The original signal was re-found in the repeat screen, confirming the reproducibility of the DELs in Cells screening platform. The co-injection of the resynthesized compounds enabled the confirmation of genuine hits identified in the campaign

  • 22A (from C1) repressed C1, C2 and C3, and induced an entirely new signal, cluster C4, comprising 253 hits.
  • 27A (from C2) left C1 intact while repressing C2 and C3.
  • 28A (from C3) left C1, C2 and C3 all intact — no engagement – consistent with a DNA-interface artefact.

Across the combined experiments 312 hits were identified. Crucially, this triage was completed before any recombinant protein was made: the screen validated its own output.

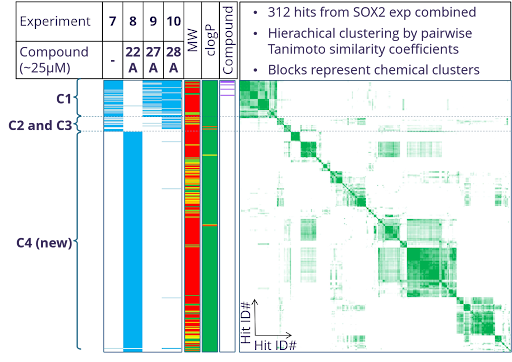

Figure 3.

Pairwise Tanimoto similarity of hits from the SOX2 screens, with blocks representing chemical clusters. Screening II: 312 hits combined; compound 22A represses C1–C3 and induces the new cluster C4 (253 hits).

EMSA validation: Modulation, not simple inhibition

The resynthesized compounds were tested against recombinant human SOX2 (50 nM) and DNA (30 nM) across the SOX2 consensus sequence and two unrelated control sequences.

In the absence of compound, and in the presence of 28A, SOX2 behaved as expected: strong binding to consensus DNA, weak binding to both controls. Adding 22A or 24A changed that preference. Binding to consensus DNA seemed to be somewhat reduced, while binding to control 1 increased and binding to control 2 became strong. The two C1 compounds are not blocking the DNA-binding interface — they are altering its sequence selectivity, promoting engagement with sequences SOX2 would normally not bind.

Dose-response EMSA ranging from 50 nM to 100 µM of 22A and 24A confirmed the effect was dose-dependent and quantifiable. 22A gave EC₅₀ values of 7.6 µM against control 1 DNA and 2.2 µM against control 2. 24A was roughly an order of magnitude more potent, at 0.7 µM and 0.5 µM, respectively — sub-micromolar potency for a first-pass screening hit against a transcription factor, with no medicinal chemistry performed.

3 → 1

Three Clusters was narrowed down to one (C1 with 15 hits) with shown effect on SOX2

2 of 4

Compounds confirmed to modulate SOX2–DNA binding

0.5 µM

EC₅₀, compound 24A

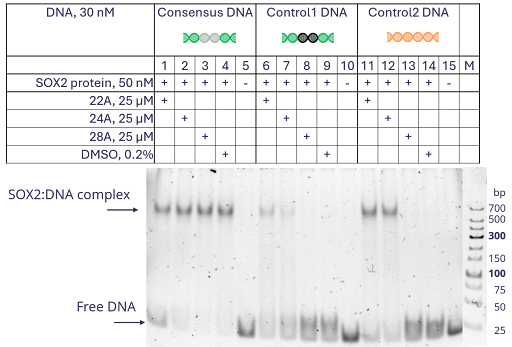

Figure 4.

Recombinant human SOX2 (50 nM) incubated with 30 nM DNA in the presence of 25 µM compound or 0.2% DMSO, resolved by 6% TBE-PAGE and detected with SYBR Green. With no compound or with 28A, SOX2 binds consensus DNA strongly and the two control sequences weakly. Compounds 22A and 24A increase binding to both control sequences and may reduce binding to consensus DNA .

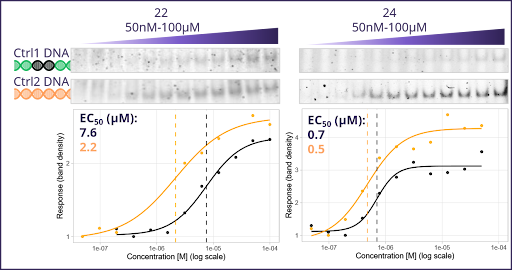

Figure 5.

EMSA dose-response for compounds 22A and 24A from 50 nM to 100 µM against control 1 and control 2 DNA. EC₅₀ values: 22A, 7.6 µM and 2.2 µM; 24A, 0.7 µM and 0.5 µM.

What this demonstrates

Transcription factors are screenable — in a cell, in one campaign

SOX2 has everything that makes a target intractable: no pocket, extensive disorder, a function that depends on a protein–DNA interface, and a DNA-binding activity that generates false positives in a DEL screen. DELs in Cells returned genuine chemistry against it, and the platform’s own competition formats — consensus DNA in Screening I, resynthesized compounds in Screening II — did the triage in-cell, before recombinant protein entered the workflow. The compounds that survived that filter then reproduced their behavior in an orthogonal biochemical assay.

The mechanism is worth stating plainly, because it is an unusual one. Where transcription factors have been drugged successfully, it has mostly been by disrupting coactivator or corepressor recruitment, by targeted degradation, or – for nuclear receptors – by exploiting a genuine ligand-binding domain. SOX2 offers none of those handles readily. It has no ligand-binding domain, and both PPI disruption and degradation depend on first having a molecule that binds the protein at all. Altering the sequence selectivity of a transcription factor is a rare mechanism rather than the field’s default, so 22A and 24A are intriguing molecules with an interesting perspective. More investigations are currently ongoing at Vipergen to resolve the mechanism of binding.

What the data supports at this stage: The compounds engage SOX2 inside living cells and alter its DNA sequence specificity. What remains open is whether re-tuned selectivity can be converted into a therapeutically useful effect on the SOX2 transcriptional program. These are the first small molecules that make that question answerable.

That said, redirecting a transcription factor’s specificity may prove to be a difficult pharmacological principle to build on: reprogramming which sequences a TF prefers is a subtle, context-dependent effect, and the therapeutic window is far from obvious. Other uses of the same binder — a PROTAC starting point, for example — may ultimately prove more tractable.

Key takeaways for your program

  • Pocketless, disordered targets are in scope. SOX2 was screened from its amino acid sequence alone, with no purified protein, no structural knowledge and no target-biased library.
  • Screening hits translate. Both compounds from the genuine cluster modulated SOX2–DNA binding in EMSA; showing target engagement – the compound from the artefact cluster did not.
  • Potency without optimization. Compound 24A reached an EC₅₀ of 0.5 µM straight out of the screen.
